Rotary drum sawdust dryer

1.Description of Rotary drum sawdust dryer
        The rotary drum  sawdust dryer is located on the active roller, the active roller is driven by the motor and the decelerating transmission drives the rotating cylinder to rotate at a low speed, and the rotary drum is driven by the motor. The rotating cylinder is provided with a baffle plate, the baffle plate is provided with a small hole, and one end of the filter tube is connected with the rotating cylinder And the other end is connected with the material conveying pipe, the filter barrel is provided with a stopper, and the bottom of the filtering cylinder is provided with a slag discharging hole. The cooling cylinder is connected with the material conveying pipe through a blower and the other end with a discharging port.

        Due to the above structure, the sawdust can be sufficiently dried in the rotating cylinder and the sawdust is sufficiently diffused again before entering the material conveying pipe to make the water evaporate quickly and the stopper can block the impurities in the sawdust to ensure the entry into the material conveying pipe the quality of. Sawdust into the sawdust dryer by the injection tube and the rotating cylinder together, the material in the cylinder boiling fluidized, hot air and material full touch, complete the drying.

Rotary drum sawdust dryer

2.Raw material for dryer
        After drying the sawdust, use briquettes machine produce sawdust briquettes, carbonized the briquettes get BBQ.full product line include crusher-dryer-sawdust briquettes machine-carbonized stove

Rotary drum sawdust dryer

Rotary drum sawdust dryer

3.Different parts for Rotary drum sawdust dryer

Inside piping of the dryer

Rotary drum sawdust dryer

Rotary drum sawdust dryer

Finished dryer

Rotary drum sawdust dryer

Small furnace for dryer

Rotary drum sawdust dryer

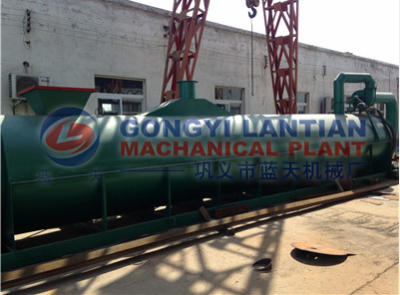

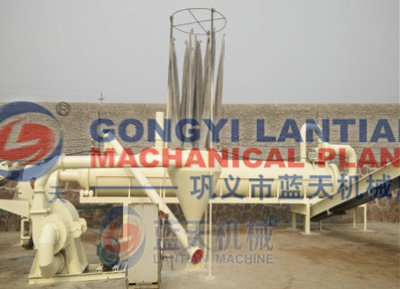

Full set dryer(Crusher-screw conveyor-dryer-conveyor belt)

 Rotary drum sawdust dryer

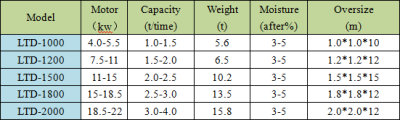

4.Parameters for Rotary drum sawdust dryer

Rotary drum sawdust dryer

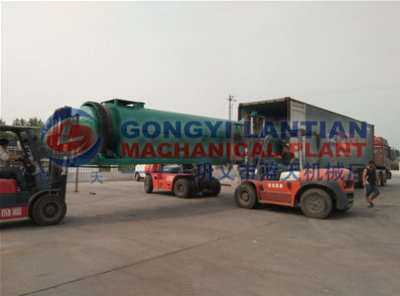

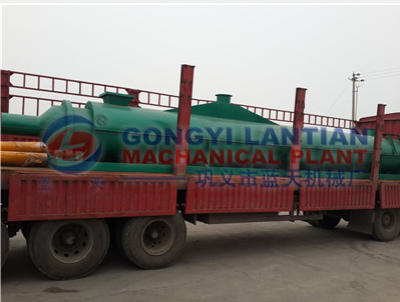

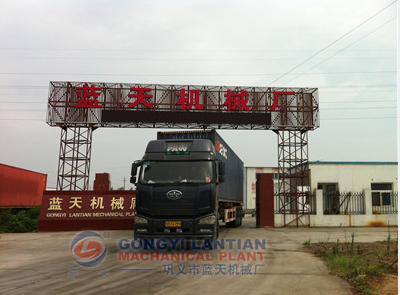

5.Load for Rotary drum sawdust dryer

Rotary drum sawdust dryer

Rotary drum sawdust dryer

Rotary drum sawdust dryer

6.Advantages of Rotary drum sawdust dryer
        1-the drying time is short
        2-air dryer structure is simple, small footprint, easy construction and maintenance.
        3- the drying intensity, due to the highly dispersed material in the air, all the surface of the particle active dry area.
        4- large capacity, high thermal efficiency. When drying unbound water, the thermal efficiency of up to 60%.

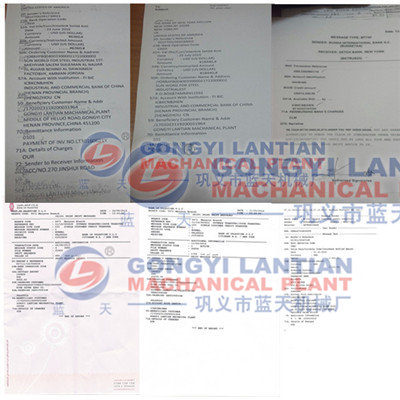

7.Swift paper from different customer
        After we sighed PI with customer, we will get 30% deposit,then we ready all the machine , after3-7 working days, machine will be finished, customer pay the left 70% money, once we get the bank swift, will contact shipper agent, load machine at once.
        -Payment term: TT,  West Union,  L/C
        -Price term:EXW ,FOB,CIF,DDU,DDP
        -Delivery time:3-7Working days after getting deposit

Rotary drum sawdust dryer

8.Company information
        Gongyi Lantian Machanical Plant was built at 80s, has more than 30 years manufacturer experience. We are Professional committed to the type of coal /Charcoal briquettes equipment, Hydraulic press machine ,Coal/hookah briquettes machine ,Ball press machine ,Drying equipment, Biomass extrude machine ,Crusher equipment,Carbonized equipment.All the machine has certification. Such as CE, ISO,CO, Form E,We are factory, has import and export rights,can export machine directly,no need trade company ,any question about machine quality and shipping problem, you can chat with us,all the sales understand English.

Rotary drum sawdust dryer

9.Contact information
        If you want know more information about Rotary drum sawdust dryer Contact me at anytime, i will be online 24 hours.help you study this project from start to finished.
